Versa-Lok - Segmental Retaining Walls

VERSA-LOK retaining wall systems offer a blend of aesthetic versatility, structural integrity, and ease of installation, making them an ideal choice for a wide range of retaining wall projects. With their unique pinning system, VERSA-LOK units allow flexible design options, including curves, corners, and stairs, without the need for special units. This modularity not only enhances creative freedom but also simplifies inventory management and on-site adjustments.

The non-toxic, environmentally friendly composition of VERSA-LOK systems ensures sustainability in design, an aspect increasingly valued in modern architecture. Additionally, the high compressive strength and durability of VERSA-LOK blocks accommodate the demands of both small-scale courtyard projects and large-scale soil retention applications, providing architects, builders, and hardscape installers with a reliable solution that meets both aesthetic and structural requirements.

Estimating Tool

VERSA-LOK Segmental Retaining Wall Unit Types

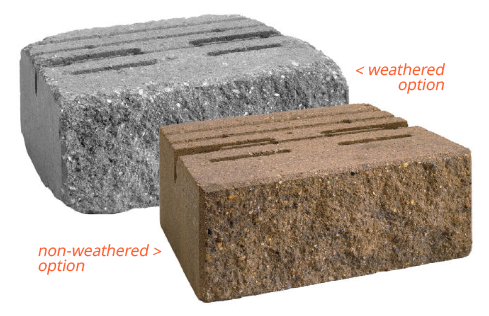

Standard

The original and most popular VERSA-LOK masonry unit block features a unique pinned system that provides versatile design options and the peace of mind of solid concrete construction.

Dimensions:

12″ D x 6″ H x 16″ L

Harmony

This retaining wall system combines Standard and Cobble units for visual interest, providing the peace of mind of pinned, solid concrete construction.

Dimensions:

Standard: 12” D x 6” H x 16” L
Cobble: 12” D x 6” H x 8” L

Freestanding Standard

A Freestanding Standard is a Standard masonry unit with both sides finished. Often referred to as a parapet wall, these retaining wall blocks are installed with no setback and do not retain soil.

Dimensions:

10” D x 6” H x 16” L

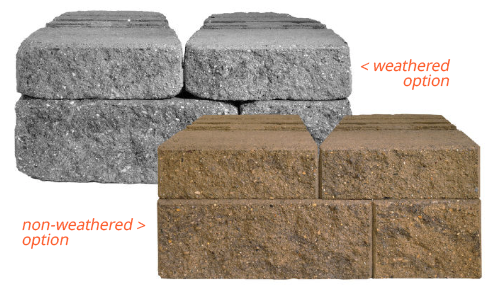

Mosaic

This striking wall is created by combining Standard, Cobble, and Accent units. Despite its visual complexity, the Mosaic pattern is easy to install and provides the peace of mind of pinned, solid concrete construction.

Dimensions:
Mosaic walls are made up of 1 Standard, 1 Cobble and 2 Accent units per 24″

Standard: 12” D x 6” H x 16” L
Cobble: 12” D x 6” H x 8” L
Accent: 12” D x 4” H x 12”

Square Foot

Its cored, trapezoidal shape, and top-pinning system allow for variable bond construction, accurate alignment, tighter vertical joints, and easy installation. Each unit covers one square foot of wall area.

Dimensions:

12” D x 8” H x 18” L

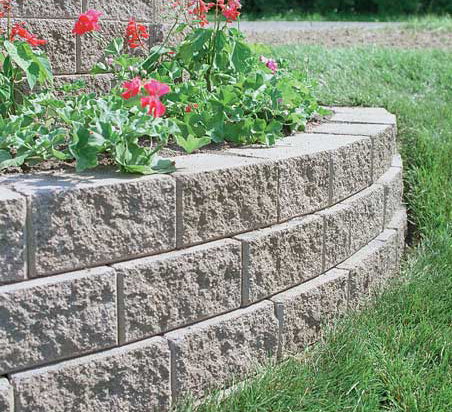

Handy-Stone

Perfect for garden walls or landscape borders, Handy-Stone retaining walls can be built up to 3 feet tall.

Dimensions:

12” D x 4” H x 18” L

VERSA-LOK Segmental Retaining Wall Unit Colors – Available in the Piedmont Area & Western North Carolina

Ashland Gray

Yadkin Brown

Desert Buff

Appalachian

Colonial

Nutmeg

VERSA-LOK Segmental Retaining Wall Unit Colors – Available in the Raleigh Area & Eastern North Carolina

Estate Gray

Tumbleweed Tan

Canyon Blend

Maplewood

All of the colors above are available in weathered and non-weathered textures. Actual color may vary from current production runs. Always contact a Johnson Concrete Products sales representative for samples.
